polivision

Roller motorized polichinelle projection screen

The polivision screen is commonly found in equipment dedicated to auditoriums and performance halls.

It is a rollable and motorized projection screen of the polichinelle type, featuring a lower winding tube. Its structure, primarily composed of aluminum, provides the whole with appreciated compactness and lightness. With a winding speed of approximately 20 cm/sec, this screen offers an efficient solution for an optimal visual experience.

Large motorized screens.jpg

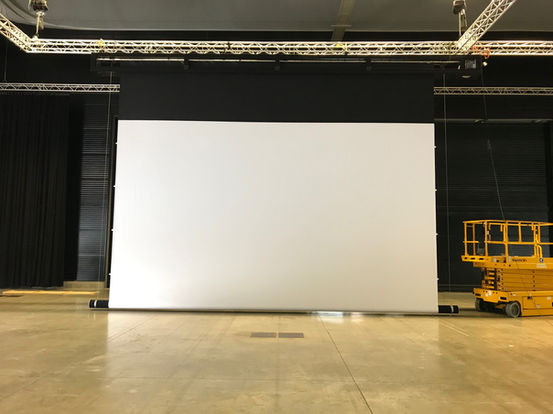

Large motorized screen


From 7 m to 25 m wide


Polichinelle type


  • Main Features
    Screen stretched over a black anodized extruded aluminum frame “Postcard” system: the frame and structural elements are hidden behind the canvas Canvas fixed with specially calibrated polyethylene tensioners Screen with rounded corners (R = 100mm) or right angles Projection canvas with 5cm reinforcement and eyelets every 20cm Screen suitable for front and rear projection Compatibility with all projection surfaces Different fixing systems available
  • Specificities
    The screen profiles are easily bendable on site when the curvature does not exceed 5%
  • Options
    Fixed or mobile masking system Screen bending

Technical characteristics

Compatible fabrics

Fabrics
Color
Opacity
Front projection
Rear projection
Perforated version
Micro-perforated version
3D projection
Gain
Weight (gr/m²)
Roll width (cm)
Super Matt
White
-
1.12
450
210
Cinopaque
White
-
-
-
-
1
560
210
Hi White
Pearly
-
1.4 - 1.8
450
-
Spectral 3D
Metallic
-
2.4
500
-
Clarus XC
Metallic
-
1.7 - 2.2
500
-
High Contrast
Gray
-
-
-
0.8
601
240
Infra
Gray
-
-
-
-
-
-
440
230
Retro Gray
Gray
-
-
-
-
-
-
440
220
Retro 3D
Grey
-
-
-
-
410
140
Retro Cream
White
-
-
-
-
430
230

Inspiration
