Fixed or mobile masking system Screen bending

cinéwalk

Large projection screen mounted on a self-supporting platform with walkways

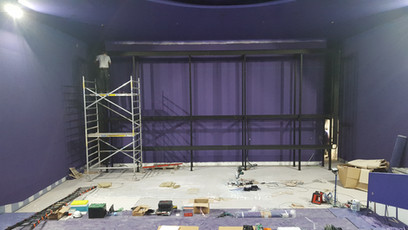

The cinéwalk projection screen is stretched over a frame made of black anodized extruded aluminum profiles and fixed on a self-supporting platform composed of lightweight and modular materials. This sturdy structure provides the flexibility to integrate ladders, walkways, or even speakers.

Specially designed for large projection surfaces, each cinéwalk project is customizable, accompanied by technical plans and a thorough site study.

Large fixed
frame screen

From 4m to 100m wide

Self-supporting platform

Screen equipped with a modular frame composed of extruded aluminum profiles, black anodized “Postcard” system: the frame and structural elements are hidden behind the canvas Canvas fixed with specially calibrated polyethylene tensioners Screen with rounded corners (R = 100mm) or right angles Projection canvas equipped with 5cm reinforcement and eyelets every 20cm Compatibility with all projection surfaces Different fixing systems available

Technical characteristics

Download the data sheet

Compatible fabrics

Fabrics	Color	Front projection	Rear projection	Perforated version	Micro-perforated version	3D projection	Gain	Weight (gr/m²)	Roll width (cm)
Super Matt	White	✓	-	✓	✓	✓	1.12	450	210
Cinopaque	White	✓	-	-	-	-	1	560	210
Hi White	Pearly	✓	-	✓	✓	✓	1.4 - 1.8	450	-
Spectral 3D	Metalized	✓	-	✓	✓	✓	2.4	500	-
Clarus XC	Metalized	✓	-	✓	✓	✓	1.7 - 2.2	500	-
High Contrast	Grey	✓	-	-	✓	-	0.8	601	240
Infra	Grey	-	✓	-	-	-	-	440	230
Retro Grey	grey	-	✓	-	-	-	-	440	220
Retro 3D	Grey	-	✓	-	-	✓	-	410	140
Retro Cream	White	✓	✓	-	-	-	0.8	430	230
Green Screen	Green	✓	-	-	-	-	1	480	170
